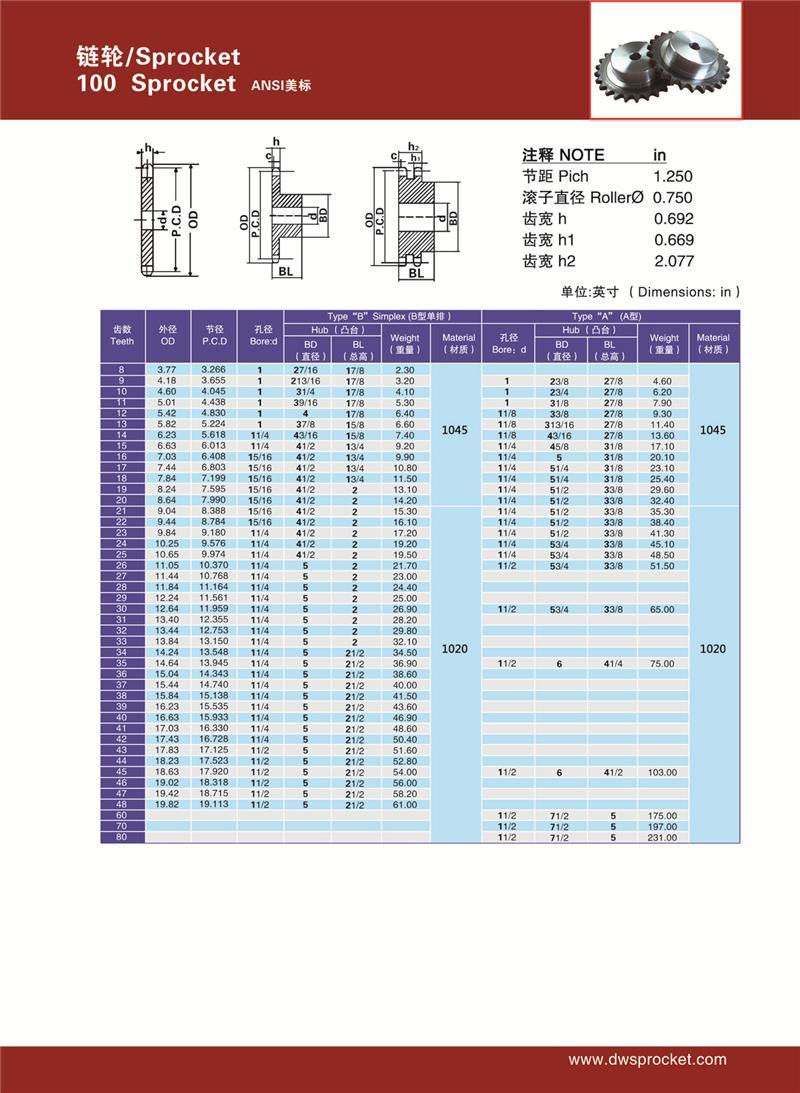

100-1 Sprocket Single Type B & C
100B-1 Roller Chain sprockets are suitable for roller chains based on the requirements of America standard; All sprockets with pilot bore.
Single-Type B & C
Sprocket: 100B; 100C
Pitch: 1-1/4"; 31.75mm
Roller: 0.750"; 19.05mm
Tooth Width: 0.692"; 17.6mm
Teeth: 100B8; 100B9; 100B10; 100B11; 100B12; 100B13; 100B14; 100B15; 100B16; 100B17; 100B18; 100B19; 100B20; 100B21; 100B22; 100B23; 100B24; 100B25; 100B26; 100B27; 100B28; 100B29; 100B30; 100B31; 100B32; 100B33; 100B34; 100B35; 100B36; 100B37; 100B38; 100B39; 100B40; 100B41; 100B42; 100B43; 100B44; 100B45; 100B46; 100B47; 100B48; 100B49; 100B50; 100B51; 100B52; 100B53; 100C54; 100C55; 100C56; 100C57; 100C58; 100C59; 100C60; 100C65; 100C70; 100C72; 100C75; 100C76; 100C78; 100C80; 100C84; 100C95; 100C96; 100C112
Pilot bore: 1"; 11/4"; 15/16"; 11/4"; 11/2"; 25.4mm, 31.75mm, 33.34mm, 31.75mm, 38.1mm
Standard: ANSI/ ASA/ American standard series
Surface treatment: Hardened teeth; Galvanized; Oxidation blackening; phosphate blackening; based on customer requirements
Quality contral: has passed ISO 9001:2008 certificate
Application: Power Drive Transmission Parts
Feature: DWSK products with high quality, excellent performance and smooth surface, every step from production to the packing process has a strict quality inspection, insure that our product high precision, high strength, high wear resistance.
We are the manufacturers of sprocket, Services for the power transmission components. Sprockets and plate wheels are our central products and we have a definite advantage in terms of production, service and price. All sprockets are suitable for roller chains based on the requirements of American standard with pilot bores, Special surface treatments are available on request. Anyway you have a lot of options here. DWSK must be your sprocket supplier of choice.
Sprockets are available in many different materials, such as steel, stainless steels and various plastics or urethanes. They are available in many shapes, sizes and styles.
The four most common sprocket styles are:
Type A- Plain or flat plate
Type B- Hub on one side
Type C- Hub on both sides
Type D- Detachable hubs
