DWSK Sprocket

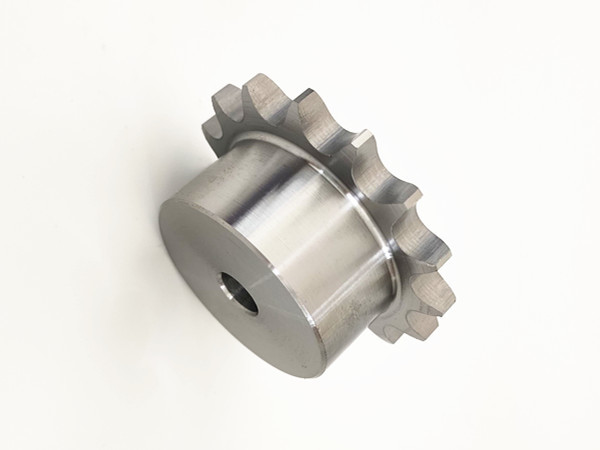

40-1 Sprocket Single Type B

40B8; 40B9; 40B10; 40B11; 40B12; 40B13; 40B14; 40B15; 40B16; 40B17; 40B18; 40B19; 40B20; 40B21; 40B22; 40B23; 40B24; 40B25; 40B26; 40B27; 40B28; 40B29; 40B30;  40B31; 40B32; 40B33; 40B34; 40B35; 40B36; 40B37; 40B38; 40B39; 40B40; 40B41; 40B42; 40B43; 40B44; 40B45; 40B46; 40B47; 40B48; 40B49; 40B50; 40B51; 40B52; 40B53; 40B54; 40B55; 40B56; 45B57; 40B58; 40B59; 40B60; 40B65; 40B70; 40B72; 40B75; 40B80; 40B84; 40B96; 40B112

Keywords:

40B B type single 40B20 sprocket B type single Wholesale Price

Category:

Srvice:

Introduction

40B-1 Roller Chain sprockets are suitable for roller chains based on the requirements of America standard; All sprockets with pilot bore.

Single-Type B- Hub on one side

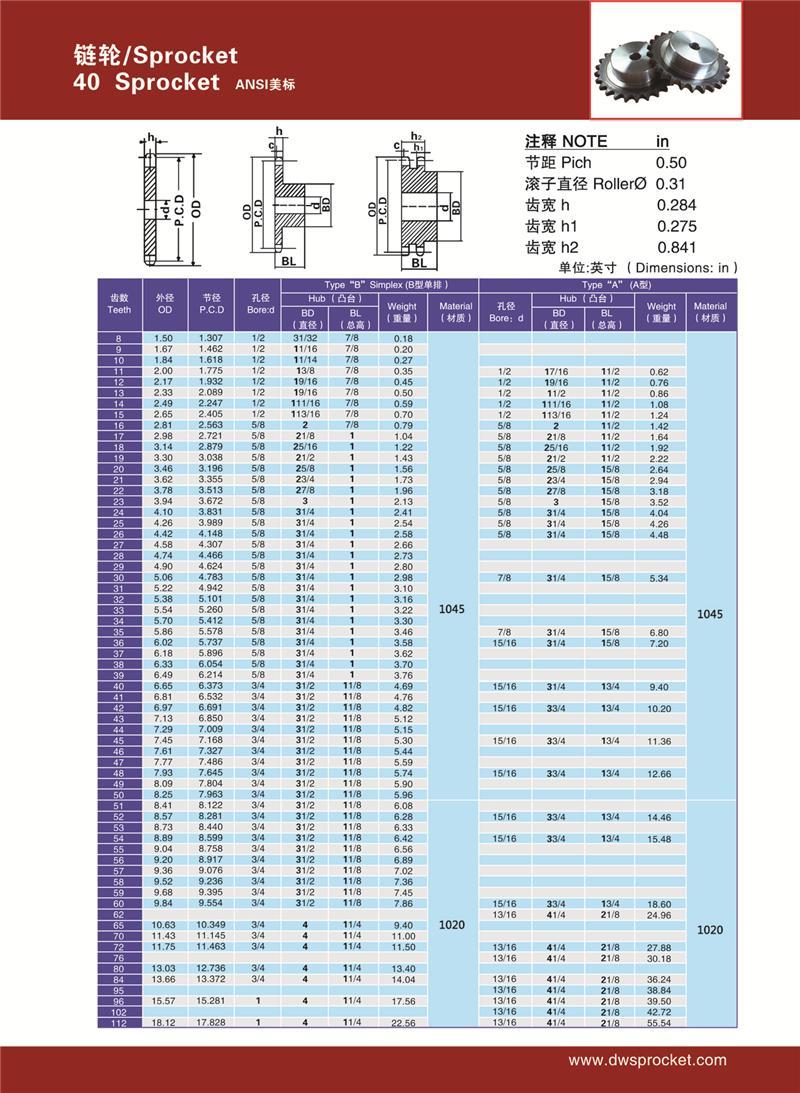

Technical data

Sprocket: 40B

Pitch: 1/2"; 12.7mm

Roller: 0.312"; 7.95mm

Tooth Width: 0.284"; 7.2mm

Teeth: 40B8; 40B9; 40B10; 40B11; 40B12; 40B13; 40B14; 40B15; 40B16; 40B17; 40B18; 40B19; 40B20; 40B21; 40B22; 40B23; 40B24; 40B25; 40B26; 40B27; 40B28; 40B29; 40B30;  40B31; 40B32; 40B33; 40B34; 40B35; 40B36; 40B37; 40B38; 40B39; 40B40; 40B41; 40B42; 40B43; 40B44; 40B45; 40B46; 40B47; 40B48; 40B49; 40B50; 40B51; 40B52; 40B53; 40B54; 40B55; 40B56; 45B57; 40B58; 40B59; 40B60; 40B65; 40B70; 40B72; 40B75; 40B80; 40B84; 40B96; 40B112

Pilot bore: 1/2"; 5/8"; 3/4"; 1"; 12.7mm; 15.875mm, 19.05mm, 25.4mm

Standard: ANSI/ ASA/ American standard series

Surface treatment: Hardened teeth; Galvanized; Oxidation blackening; phosphate blackening; based on customer requirements

Brand: DWSK

Quality contral: has passed ISO 9001:2008 certificate

Application: Transmission Parts

Processing: Forging-Machining-Hobbing

Feature:   DWSK products with high quality, excellent performance and smooth surface, every step from production to the packing process has a strict quality inspection, insure that our product high precision, high strength, high wear resistance.



We are the manufacturers of sprocket, Services for the power transmission components. Sprockets and plate wheels are our central products and we have a definite advantage in terms of production, service and price. All sprockets are suitable for roller chains based on the requirements of America standard with pilot bores, Special surface treatments are available on request. Anyway you have a lot of options here. DWSK must be your sprocket supplier of choice.



Sprockets are available in many different materials, such as steel, stainless steels and various plastics or urethanes. They are available in many shapes, sizes and styles.
The four most common sprocket styles are:

Type A- Plain or flat plate

Type B- Hub on one side

Type C- Hub on both sides

Type D- Detachable hubs
